Analog temperature switch with pin-selectable trip points, capable of 1.4V operation. Features a 1.4V to 3.6V supply voltage range and a maximum operating temperature of 125°C. This surface mount component in a SOT package offers a digital output with 3mA output current and a typical quiescent current of 8uA. Operating temperature range is -40°C to 125°C.
PackageSOT
Current8uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP302ADRLT technical specifications.
General
| Package/Case | SOT |
| Height | 0.55mm |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10mA |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 1.4V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Operating Supply Current | 8uA |
| Output Current | 3mA |
| Output Type | Digital |
| Output Voltage | 400mV |
| Packaging | Tape and Reel |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 8uA |
| Switching Temperature | 65°C |
| Termination | SMD/SMT |
| Thickness | 550um |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMP302ADRLT Datasheet
Download the complete datasheet for Texas Instruments TMP302ADRLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

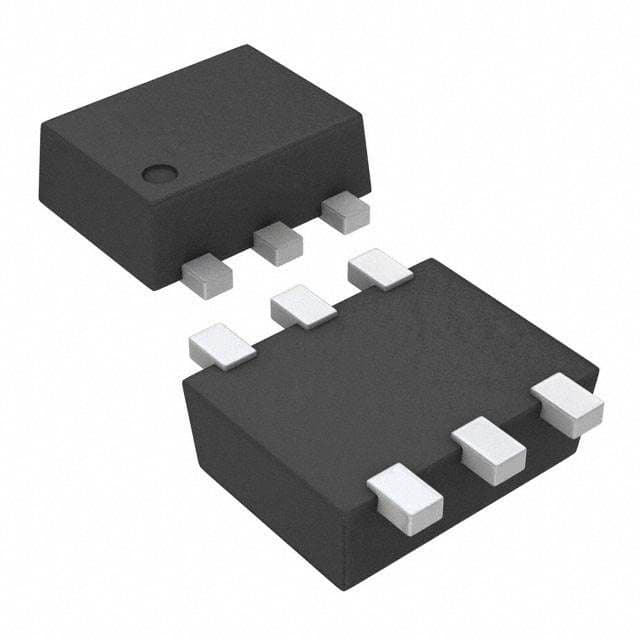

Product Images
