The PIC24FJ128GA406 is a 128 kilobyte FLASH microcontroller that features a PIC core architecture and supports a variety of interfaces, including I2C, SPI, IrDA, UART, and USART. This device operates over a temperature range of -40 degrees Celsius to 85 degrees Celsius and is packaged in a 64-pin TQFP package. It is suitable for surface mount applications and is compliant with RoHS regulations. The microcontroller includes a range of peripherals, including brown-out detect/reset, power-on reset, pulse-width modulation, and watchdog timer, as well as DMA and low-voltage detect capabilities. With 53 I/Os, this microcontroller is well-suited for a variety of applications.
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GA406-I/PT technical specifications.
General
| Package/Case | TQFP |
| Core Architecture | PIC |
| Interface | I2C, SPI, IrDA, UART, USART |
| Max Operating Temperature | 85°C |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 53 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LVD, LCD |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 24F |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24FJ128GA406-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ128GA406-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

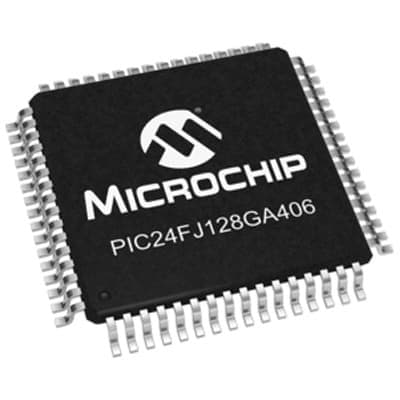

Product Images
