16-bit, 160MS/s Analog-to-Digital Converter (ADC) featuring a parallel interface. This single-channel device offers a bipolar polarity and operates from a 3.135V to 3.465V supply voltage, with a typical 3.3V operating voltage. Integral nonlinearity is specified at 5.5 LSB. Packaged in a 64-QFN for surface mounting, it supports an operating temperature range of -40°C to 85°C.
PackageQFN
Current440mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2209IUP#PBF technical specifications.
General
| Package/Case | QFN |
| Integral Nonlinearity (INL) | 5.5LSB |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.95W |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Dissipation | 1.98W |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 160MS/s |
| Supply Current | 440mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2209IUP#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2209IUP#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

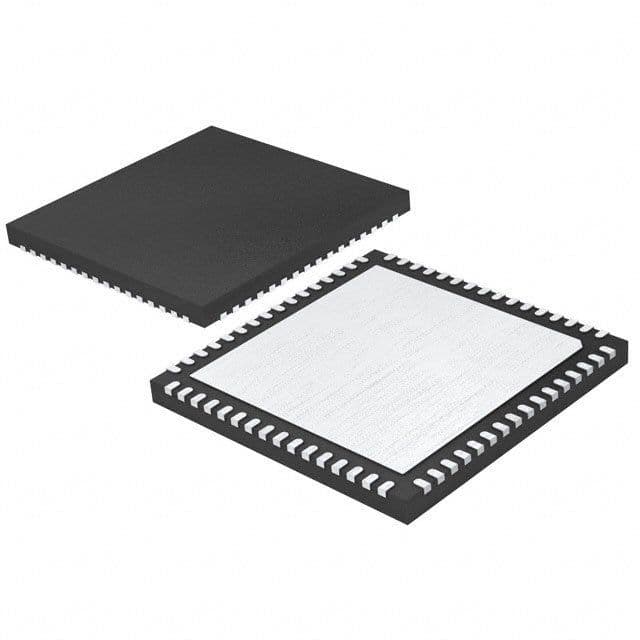

Product Images
