The ITT 7301SYZQI is a 3PDT toggle switch with a maximum operating temperature range of -30°C to 85°C. It features a silver contact material and silver plating. The switch is rated for 28V DC and 250V AC. It is packaged in bulk and is RoHS compliant. The switch is mounted on a panel and has a solder termination.
MountingPanel
Quick Jump:
Technical Specifications
ITT 7301SYZQI technical specifications.
General
| Contact Material | Silver |
| Contact Plating | Silver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Panel |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Throw Configuration | 3PDT |
Compliance
| RoHS | Compliant |
Datasheet
ITT 7301SYZQI Datasheet
Download the complete datasheet for ITT 7301SYZQI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

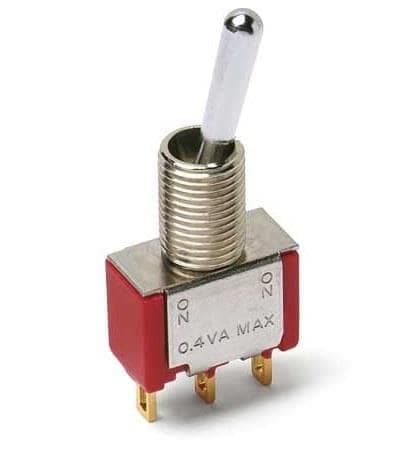

Product Images
