PackageCDIP
MountingThrough Hole
Power830mW
Quick Jump:
Technical Specifications
Texas Instruments LM158J/883 technical specifications.
General
| Package/Case | CDIP |
| Common Mode Rejection Ratio | 70dB |
| Input Bias Current | 1nA |
| Input Offset Voltage (Vos) | 5mV |
| Max Dual Supply Voltage | 16V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Elements | 2 |
| Packaging | Rail/Tube |
| Power Dissipation | 830mW |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| RoHS Compliant | No |
| Slew Rate | 0.5V/µs |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 93.98dB |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM158J/883 Datasheet
Download the complete datasheet for Texas Instruments LM158J/883 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

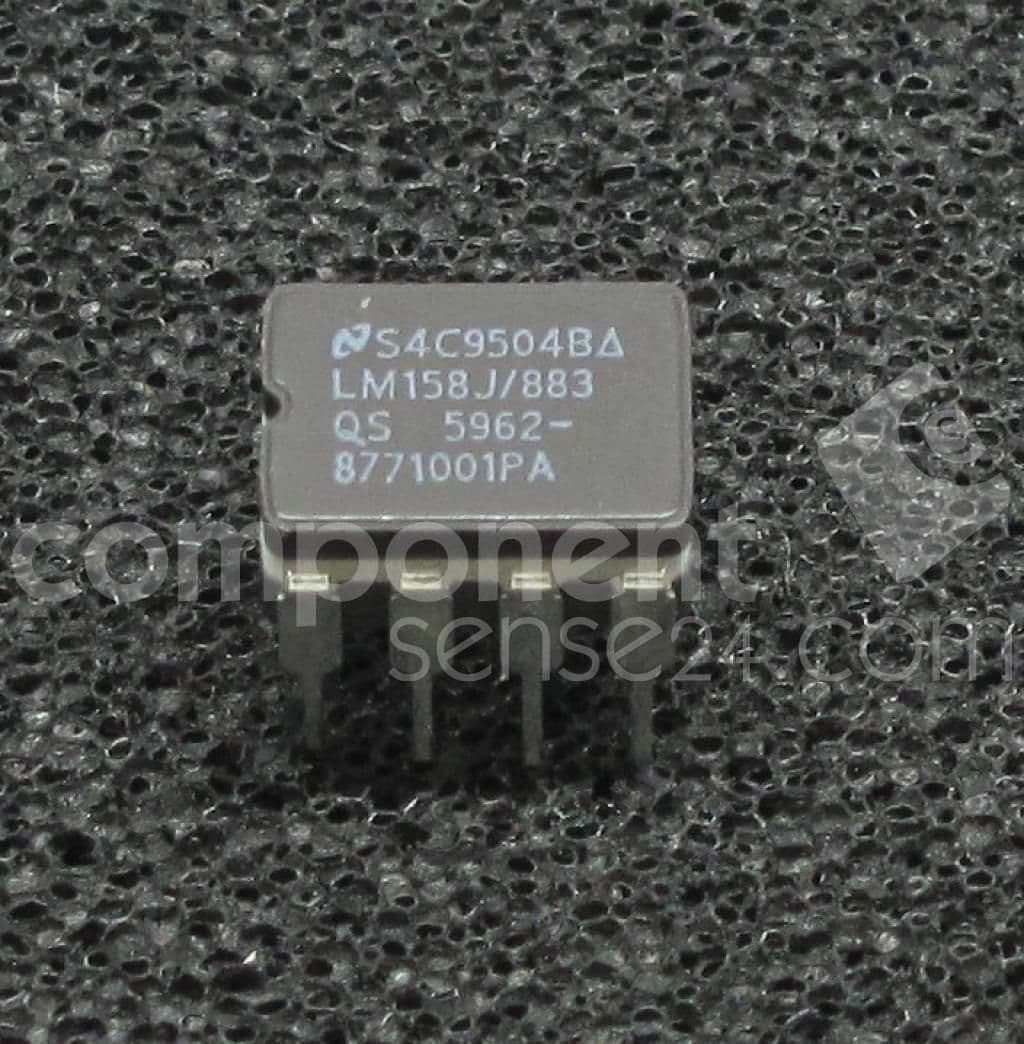

Product Images
