Transmissive photointerrupter featuring a 3mm slot width and Photologic output. This component operates with a maximum collector-emitter voltage of 28V and a maximum forward current of 20mA. It offers a propagation delay and fall time of 20µs, with a maximum power dissipation of 250mW. The device supports through-hole PCB mounting and has an NPN open collector output configuration. It is RoHS compliant and operates within a temperature range of -40°C to 75°C.
MountingThrough Hole, PCB
Power250mW
Quick Jump:
Technical Specifications
Omron EE-SX398 technical specifications.
General
| Collector Emitter Voltage (VCEO) | 28V |
| Fall Time | 20us |
| Forward Current | 20mA |
| Height | 10mm |
| Input Current | 50mA |
| Lead Free | Lead Free |
| Length | 5mm |
| Low Level Output Current | 16mA |
| Max Collector Current | 16mA |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 16mA |
| Max Power Dissipation | 250mW |
| Max Reverse Current | 10nA |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 3.2mA |
| Operating Supply Voltage | 16V |
| Output | TRANSISTOR |
| Output Configuration | NPN - Open Collector |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 250mW |
| Propagation Delay | 20us |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 4V |
| Reverse Voltage (DC) | 4V |
| RoHS Compliant | Yes |
| Termination | Solder |
| Wavelength | 940nm |
| Width | 12.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron EE-SX398 Datasheet
Download the complete datasheet for Omron EE-SX398 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

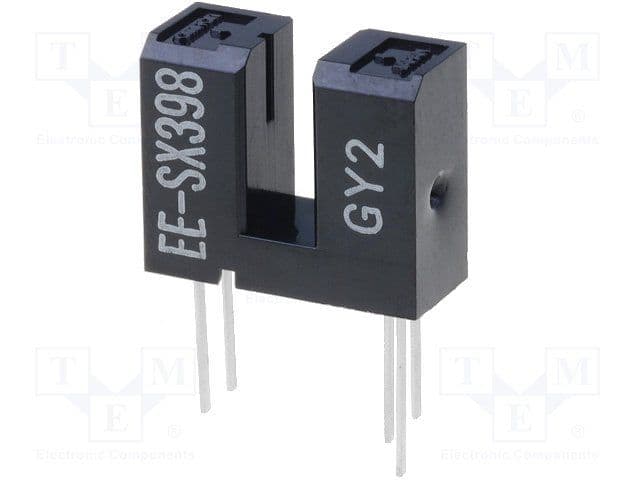

Product Images
