Texas Instruments
CC8521RHAR
PurePath™ Wireless 2.4 GHz for wireless digital audio streaming supporting up to 2 channels with USB 40-VQFN -40 to 85
Frequency2.4GHz
PackageVQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC8521RHAR technical specifications.
General
| Package/Case | VQFN EP |
| Contact Plating | Gold |
| Data Rate | 5000Kbps |
| Frequency | 2.4GHz |
| Interface | I2C, SPI, USB, I2S |
| Lead Free | Lead Free |
| Max Frequency | 2.4835GHz |
| Min Frequency | 2.4GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of GPIO | 15 |
| Output Power (dBm) | 3.5dBm |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sensitivity | -90dBm |
| Series | PurePath™ Wireless |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CC8521RHAR Datasheet
Download the complete datasheet for Texas Instruments CC8521RHAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

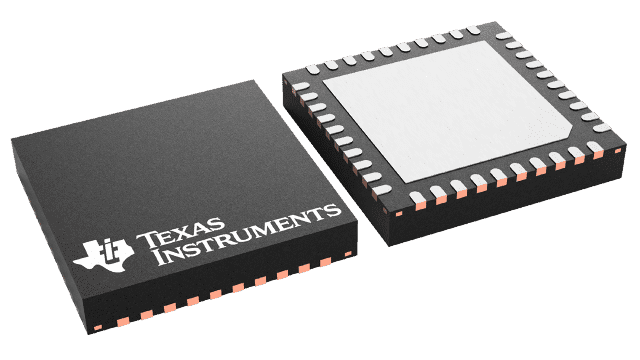

Product Images
