High-voltage window voltage detector for overvoltage and undervoltage monitoring. Features a 1.8V to 18V supply voltage range and 5.5mV hysteresis. Monitors two voltages with 404mV overvoltage and 396mV undervoltage thresholds. Operates from -40°C to 125°C with a low 5.5µA supply current. Packaged in a 1mm high SOT-23-6 surface mount component.
PackageSOT-23-6
Current5.5uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS3700DDCT technical specifications.
General
| Package/Case | SOT-23-6 |
| Height | 1mm |
| Hysteresis | 5.5mV |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 2 |
| Number of Voltages Monitored | 2 |
| Operating Supply Current | 5.5uA |
| Overvoltage Threshold | 404mV |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 29us |
| Quiescent Current | 11uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TPS3700 |
| Supply Current | 5.5uA |
| Undervoltage Threshold | 396mV |
| Watchdog Timer | No |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS3700DDCT Datasheet
Download the complete datasheet for Texas Instruments TPS3700DDCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

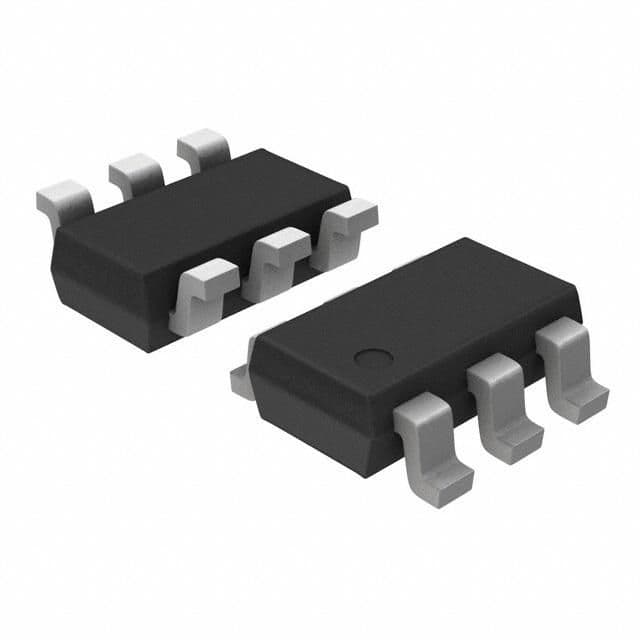

Product Images
