The ATS01N206QN is a soft starter with a control voltage of 240V and a current rating of 6A. It has a maximum operating temperature of 40°C and a minimum operating temperature of -10°C. The device is rated for use with a maximum supply voltage of 415V and a minimum supply voltage of 380V. It has a depth of 145mm and a length of 130.7mm. The ATS01N206QN is compliant with IP20 ratings and is part of the ATS01 series.
Voltage Rating415V
Current Rating6A
Quick Jump:
Technical Specifications
Schneider ATS01N206QN technical specifications.
General
| Control Voltage | 240V |
| Current Rating | 6A |
| Length | 130.7mm |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 415V |
| Min Supply Voltage | 380V |
| Overall Depth | 145mm |
| Package Quantity | 1 |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| Series | ATS01 |
| Voltage Rating | 415V |
Compliance
| RoHS | Compliant |
Datasheet
Schneider ATS01N206QN Datasheet
Download the complete datasheet for Schneider ATS01N206QN to view detailed technical specifications.
No datasheet is available for this part.

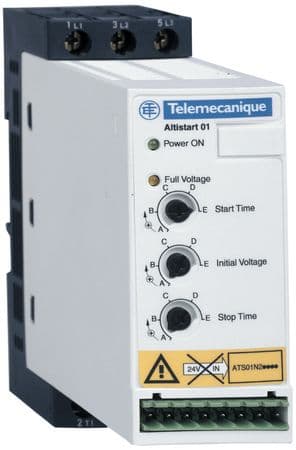

Product Images
