The LTC4098EUDC#TRPBF is a 1-cell battery management IC from Analog Devices, packaged in a QFN EP package. It operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. This device is suitable for battery management applications, with a maximum input voltage of 5.5V and minimum input voltage of 4.35V.
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC4098EUDC#TRPBF technical specifications.
General
| Package/Case | QFN EP |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.35V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Cells | 1 |
| Number of Outputs | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Bat-Track™, PowerPath™ |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC4098EUDC#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC4098EUDC#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

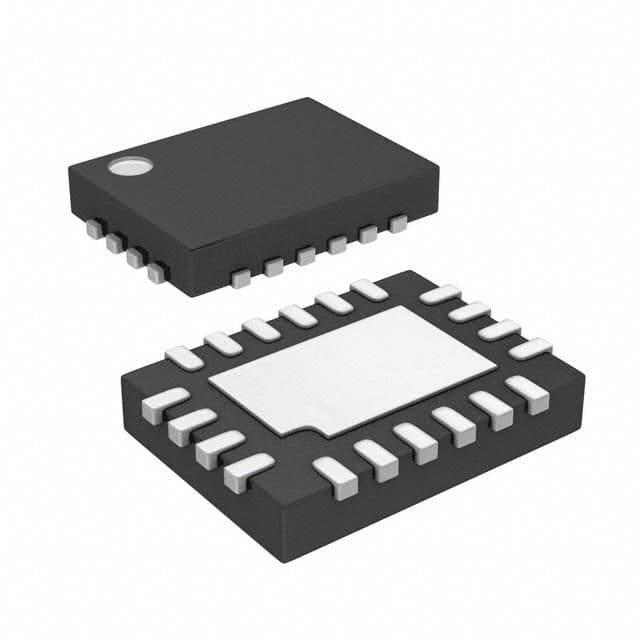

Product Images
