1A step-down DC/DC converter with adjustable output voltage from 800mV to 18V. Features a wide input voltage range of 3V to 20V and a maximum output current of 1A. Operates at a switching frequency of 660kHz with up to 90% efficiency. Packaged in a compact SOT-23-6 surface-mount case, measuring 2.9mm x 1.6mm x 1.1mm. Suitable for operation across a temperature range of -40°C to 125°C.
Frequency660kHz
PackageSOT-23-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2734YMK technical specifications.
General
| Package/Case | SOT-23-6 |
| Efficiency | 90% |
| Frequency | 660kHz |
| Height | 1.1mm |
| Lead Free | Contains Lead |
| Length | 2.9mm |
| Max Input Voltage | 20V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 18V |
| Min Output Voltage | 800mV |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 18V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.1mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
| Thickness | 870um |
| Width | 1.6mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM2734YMK Datasheet
Download the complete datasheet for Texas Instruments LM2734YMK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

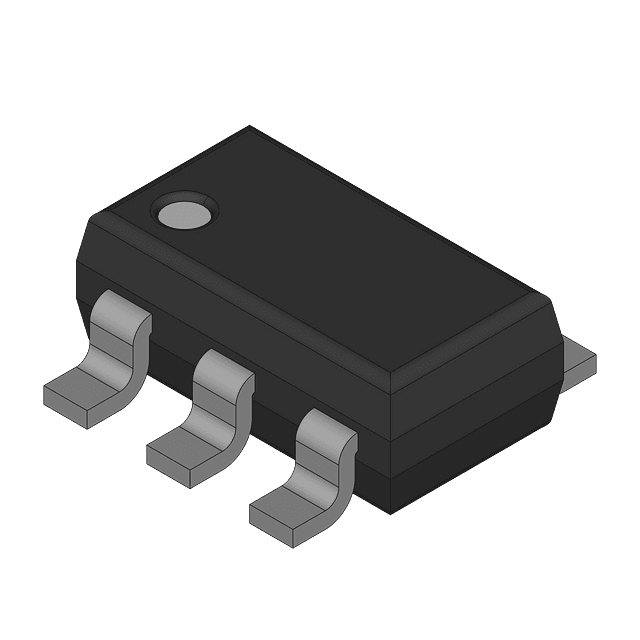

Product Images
