Fiber optic transmitter featuring a 820nm wavelength, operating at 160Mbps. This through-hole mount component offers a 5V operating supply voltage and a 100mA forward current. It supports a temperature range from -40°C to 85°C and is RoHS compliant.
PackageSMA
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1424Z technical specifications.
General
| Package/Case | SMA |
| Forward Current | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Reverse Voltage (DC) | 3.8V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 3.8V |
| RoHS Compliant | Yes |
| Wavelength | 820nm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-1424Z Datasheet
Download the complete datasheet for Broadcom HFBR-1424Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

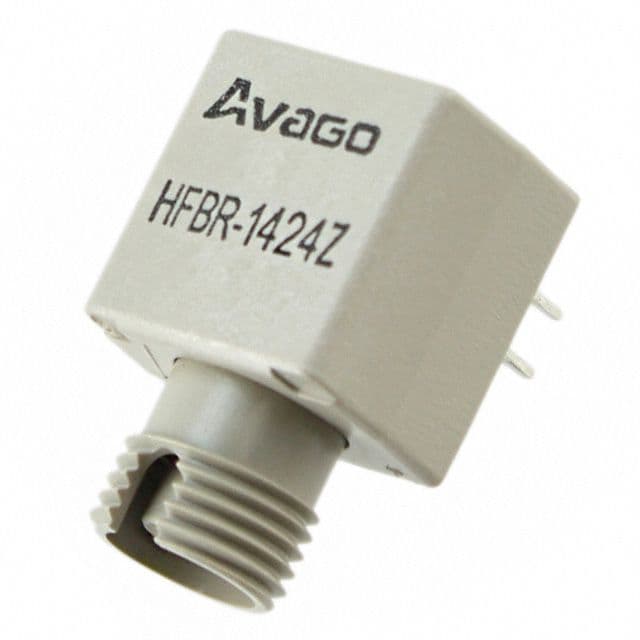

Product Images
