Precision Series Sub-Band Gap Voltage Reference, a single-channel integrated circuit, offers a stable 1V reference voltage with a 0.7% tolerance. Operating from a 2V to 18V input range, this component delivers up to 4mA of output current. Packaged in a compact TSOT with dimensions of 2.9mm x 1.6mm x 0.9mm, it functions across an extended temperature range of -40°C to 125°C. The device features a low operating supply current of 150µA and is supplied in tape and reel packaging.
PackageTSOT
Quick Jump:
Technical Specifications
Analog Devices ADR130AUJZ-R2 technical specifications.
General
| Package/Case | TSOT |
| Height | 0.9mm |
| Lead Free | Contains Lead |
| Length | 2.9mm |
| Max Input Voltage | 18V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4mA |
| Max Output Voltage | 503.5mV |
| Min Output Voltage | 1V |
| Number of Channels | 1 |
| Operating Supply Current | 150uA |
| Output Current | 4mA |
| Output Voltage | 1V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 150uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Series, Programmable |
| Reference Voltage | 1V |
| RoHS Compliant | Yes |
| Tolerance | 0.7% |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADR130AUJZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADR130AUJZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

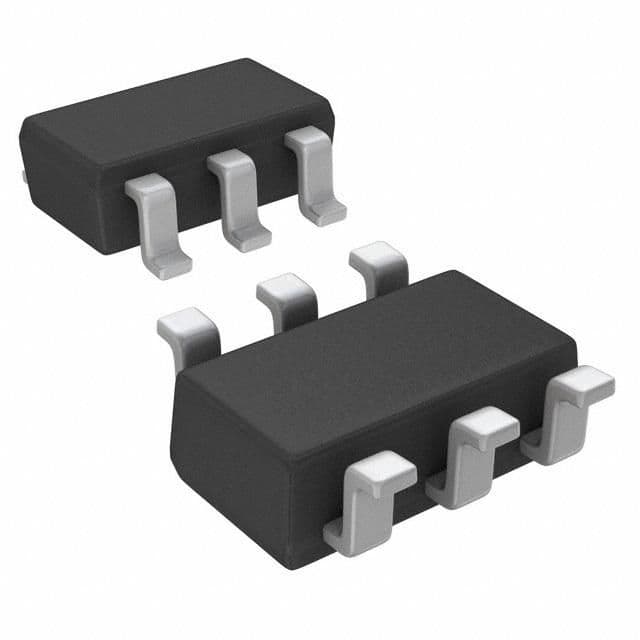

Product Images
