Texas Instruments
ADC12C080CISQ
1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, 5 X 5 MM, 0.80 MM HEIGHT, 0.50 MM PITCH, LLP-32
MountingSurface Mount
Power300mW
Quick Jump:
Technical Specifications
Texas Instruments ADC12C080CISQ technical specifications.
General
| Conversion Rate | 80000KS/s |
| Input Type | DIFFERENTIAL |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 369mW |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Operating Supply Voltage | 3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 300mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 80000000S/s |
| Signal to Noise Ratio (SNR) | 71.2dB |
| Supply Type | Single |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments ADC12C080CISQ Datasheet
Download the complete datasheet for Texas Instruments ADC12C080CISQ to view detailed technical specifications.
No datasheet is available for this part.

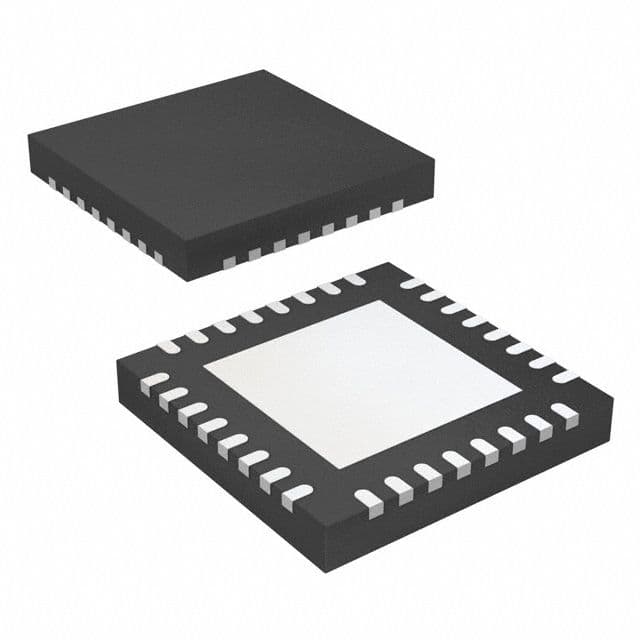

Product Images
