Technical Specifications
Analog Devices AD9845BJSTZ technical specifications.
General
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 30MS/s |
| Height | 1.4mm |
| Input Type | DIFFERENTIAL |
| Interface | 3-WIRE |
| Lead Free | Contains Lead |
| Length | 7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 153mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Package Quantity | 250 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9845BJSTZ Datasheet
Download the complete datasheet for Analog Devices AD9845BJSTZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

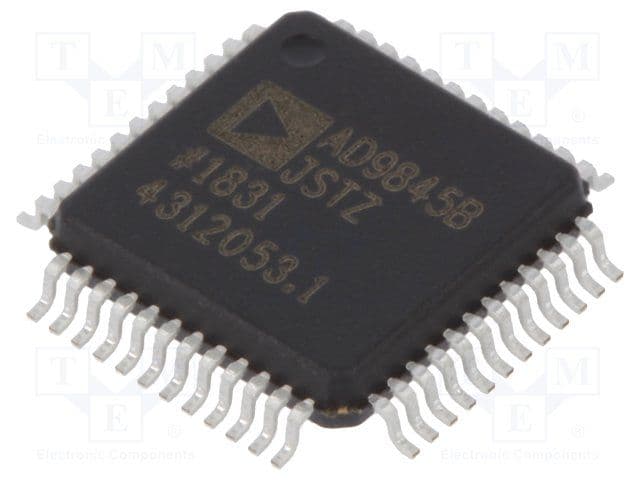

Product Images
