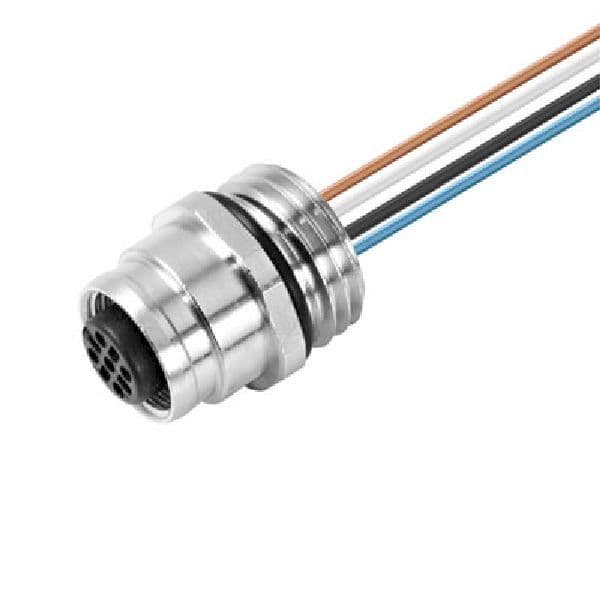

This cable assembly features a 4-pole M12 receptacle with wire leads, rated for 4A and 250V. It is constructed with PVC material and is designed for panel mount applications. The assembly is IP67 rated, making it suitable for use in harsh environments. It is not RoHS compliant.
Voltage Rating250V
Current Rating4A
MountingPanel
Quick Jump:
Technical Specifications
Weidmuller 1861120000 technical specifications.
General
| Approvals | cURus |
| Color | Multiple |
| Connector Type A | Receptacle, M12 |
| Connector Type B | Wire Leads |
| Current Rating | 4A |
| Material | PVC |
| Mount | Panel |
| Number of Poles | 4 |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | No |
| Shielding | Unshielded |
| Voltage Rating | 250V |
| Wire/Cable Type | Individual |
Compliance
| RoHS | Not Compliant |
Datasheet
Weidmuller 1861120000 Datasheet
Download the complete datasheet for Weidmuller 1861120000 to view detailed technical specifications.
No datasheet is available for this part.
