1.5A positive fixed output linear voltage regulator with 2.5V output voltage and 2% accuracy. Features a low dropout voltage of 305mV, a maximum input voltage of 5.5V, and an operating temperature range of -40°C to 125°C. This surface-mount device is housed in a SOT-223 package and offers a quiescent current of 200uA.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS78625DCQ technical specifications.
General
| Accuracy | 3% |
| Package/Case | SOT-223 |
| Dropout Voltage | 305mV |
| Height | 1.6mm |
| Input Bias Current | 310uA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Min Current Limit | 2.4A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 2.5V |
| Nominal Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 200uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 1.6mm |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS78625DCQ Datasheet
Download the complete datasheet for Texas Instruments TPS78625DCQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

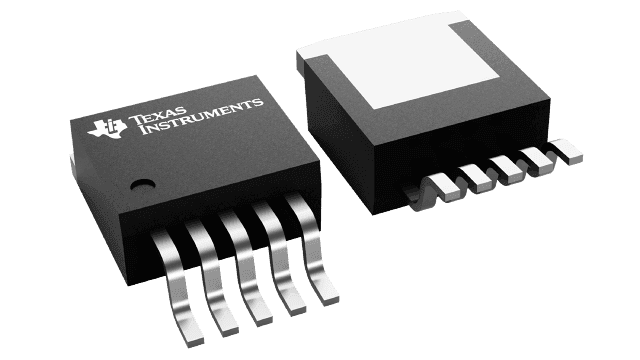

Product Images
