Rotary coded switch featuring 4 positions with a decimal output, On-On functionality, and a latched mechanism. This through-hole mounted component offers a straight orientation with a 2.54mm terminal pitch and solderable PC pin terminations. It is rated for 0.4A and 24VDC, with bronze contacts plated in nickel and gold, and a mechanical life of 10,000 cycles. The switch operates within a temperature range of -20°C to 70°C and includes a segment wheel actuator with a 4.4mm polyoxymethylene shaft.
Voltage Rating24V
Current Rating150mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Apem PT65521 technical specifications.
General
| Actuator Length | 4.4mm |
| Actuator Material | Polyoxymethylene |
| Actuator Type | Rotary |
| Body Material | Thermoplastic |
| Contact Material | Bronze |
| Contact Plating | Nickel, Gold |
| Current Rating | 150mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 10000Cycles |
| Mount | Through Hole |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | PT65 |
| Terminal Pitch | 2.54mm |
| Termination | PC Pin |
| Throw Configuration | SP4T |
| Voltage Rating | 24V |
| DC Rated Voltage | 24V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Apem PT65521 Datasheet
Download the complete datasheet for Apem PT65521 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

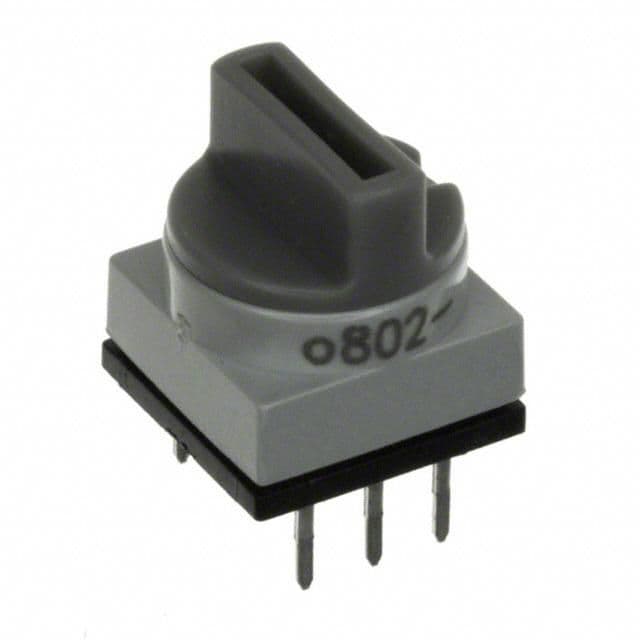

Product Images
