Single-phase bridge rectifier diode with 600V repetitive reverse voltage and 8A average rectified current. Features a 4-pin SIP package for through-hole mounting, 200A maximum surge current, and 16W power dissipation. Operates from -55°C to 150°C with a maximum reverse leakage current of 50µA.
PackageSIP
Current Rating1.5A
MountingThrough Hole
Power16W
Quick Jump:
Technical Specifications
Onsemi GBU8J technical specifications.
General
| Average Rectified Current | 8A |
| Package/Case | SIP |
| Current Rating | 1.5A |
| Forward Current | 8A |
| Height | 18.8mm |
| Lead Free | Lead Free |
| Length | 22.3mm |
| Max Forward Surge Current (Ifsm) | 200A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 50uA |
| Max Reverse Leakage Current | 50uA |
| Max Surge Current | 200A |
| Mount | Through Hole |
| Number of Elements | 1 |
| Output Current | 8A |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 200A |
| Power Dissipation | 16W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 600V |
| RoHS Compliant | No |
| DC Rated Voltage | 600V |
| Weight | 5.4g |
| Width | 3.56mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi GBU8J Datasheet
Download the complete datasheet for Onsemi GBU8J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

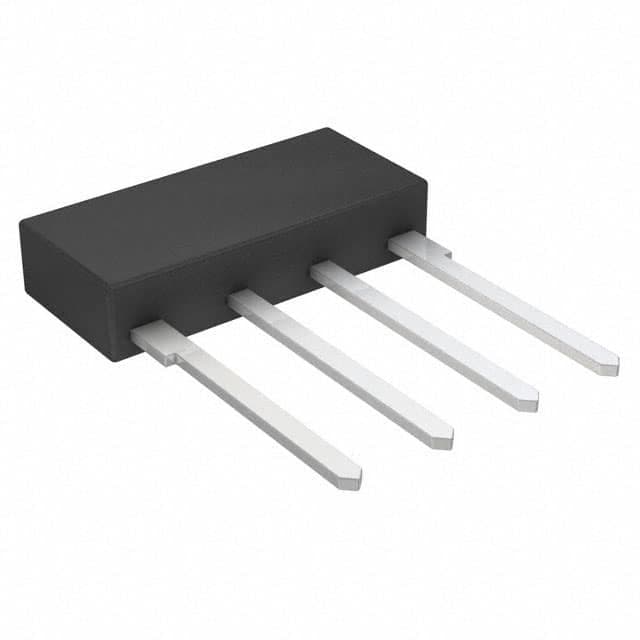

Product Images
