Texas Instruments
DS16EV5110SQ/NOPB
3-Channel I2C UART SMBus 2-Wire HDMI Interface IC, Lead Free, 85°C
The DS16EV5110SQ/NOPB is a specialized IC designed for multimedia applications. It operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The device is available in a QFN package and is lead free. It consumes a maximum power of 475W and supports multiple interfaces including I2C, UART, SMBus, 2-Wire, and HDMI. The IC has three channels and is packaged in cut tape format.
MountingSurface Mount
Power475W
Quick Jump:
Technical Specifications
Texas Instruments DS16EV5110SQ/NOPB technical specifications.
General
| Interface | I2C, UART, SMBus, 2-Wire, HDMI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Packaging | Cut Tape |
| Power Consumption | 475W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS16EV5110SQ/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS16EV5110SQ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

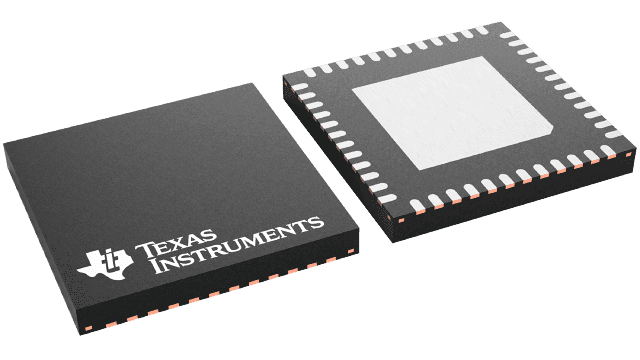

Product Images
