12-bit, single-channel Digital-to-Analog Converter (DAC) offering 225 kS/s conversion rate and 1 LSB integral and differential nonlinearity. Features an SPI interface, unipolar voltage output, and a low supply current of 110 µA with a maximum power dissipation of 880 µW. Operates from 1.8V to 5.5V supply, with a wide temperature range of -40°C to 125°C. Packaged in a 6-pin SC70 (SC) with gold contact plating, suitable for battery-powered applications.
PackageSC
Current110uA
Quick Jump:
Technical Specifications
Texas Instruments DAC7311IDCKT technical specifications.
General
| Package/Case | SC |
| Contact Plating | Gold |
| Conversion Rate | 225KS/s |
| Differential Nonlinearity | 1LSB |
| Differential Output | No |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 880uW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 225KS/s |
| Settling Time | 6us |
| Signal to Noise Ratio (SNR) | 81dB |
| Spurious-free dynamic range (SFDR) | 65dB |
| Supply Current | 110uA |
| Termination | SMD/SMT |
| Thickness | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DAC7311IDCKT Datasheet
Download the complete datasheet for Texas Instruments DAC7311IDCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

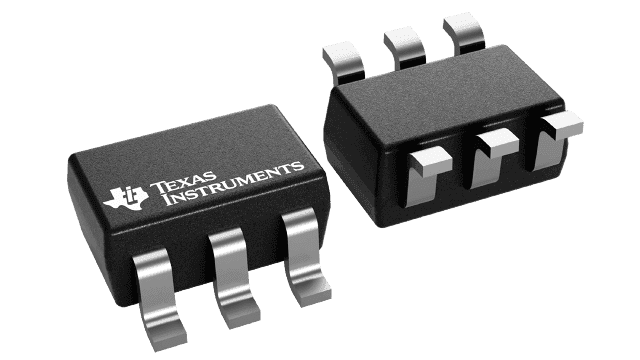

Product Images
