Surface mount thick film chip resistor with 10kΩ resistance and 1% tolerance. Features a 0603 case code (1.6mm x 0.8mm x 0.45mm) and a maximum power dissipation of 0.1W (100mW). Operates within a temperature range of -55°C to 155°C with a voltage rating of 50V. RoHS and ELV compliant, utilizing solder termination and packaged on tape and reel.
Package0603
Resistance10kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity CRG0603F10K technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Depth | 0.8mm |
| ELV | Compliant |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 100mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Operating Supply Voltage | 50V |
| Packaging | Tape and Reel |
| Resistance | 10kR |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRG, Neohm |
| Technology | THICK FILM |
| Termination | Solder |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 75V |
| Weight | 2.012816mg |
| Width | 787.4um |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity CRG0603F10K Datasheet
Download the complete datasheet for TE Connectivity CRG0603F10K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

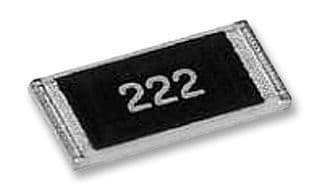

Product Images
