Ultra-low-dropout (LDO) voltage regulator, 250mA output current, featuring 0.5% output voltage accuracy and a low 40mV dropout voltage. Operates with a wide input voltage range from 1.7V to 5.5V, providing an adjustable output voltage up to 5.5V. Includes reverse current protection and an enable function. Packaged in a compact 6-SOT-223 surface-mount case with dimensions of 6.5mm x 3.5mm x 1.6mm. RoHS compliant and operates across an extended temperature range of -40°C to 125°C.
PackageSOT-223
PolarityPositive
Power2.22W
Quick Jump:
Technical Specifications
Texas Instruments TPS73201DCQ technical specifications.
General
| Accuracy | 1% |
| Package/Case | SOT-223 |
| Dropout Voltage | 40mV |
| Height | 1.6mm |
| Input Bias Current | 400uA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Min Current Limit | 250mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.2V |
| Max Power Dissipation | 2.22W |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 250mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Output Voltage Accuracy | 0.5% |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Dissipation | 2.22W |
| Quiescent Current | 400uA |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.2V |
| RoHS Compliant | Yes |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS73201DCQ Datasheet
Download the complete datasheet for Texas Instruments TPS73201DCQ to view detailed technical specifications.
No datasheet is available for this part.

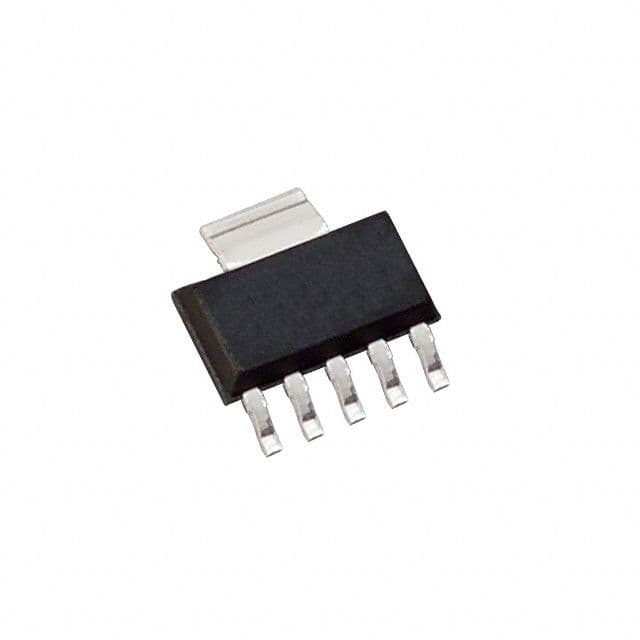

Product Images
