Power Integrations
TNY263PN
Switching Regulator, Current-mode, 0.4A, 140kHz Switching Freq-Max, PDIP7, 0.300 INCH, LEAD FREE, PLASTIC, MS-001-AB, DIP-8
PackageDIP
Current200uA
Quick Jump:
Technical Specifications
Power Integrations TNY263PN technical specifications.
General
| Package/Case | DIP |
| Lead Free | Lead Free |
| Max Duty Cycle | 68% |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 7.5W |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Output Voltage | 5.8V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TinySwitch®-II |
| Supply Current | 200uA |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Power Integrations TNY263PN Datasheet
Download the complete datasheet for Power Integrations TNY263PN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

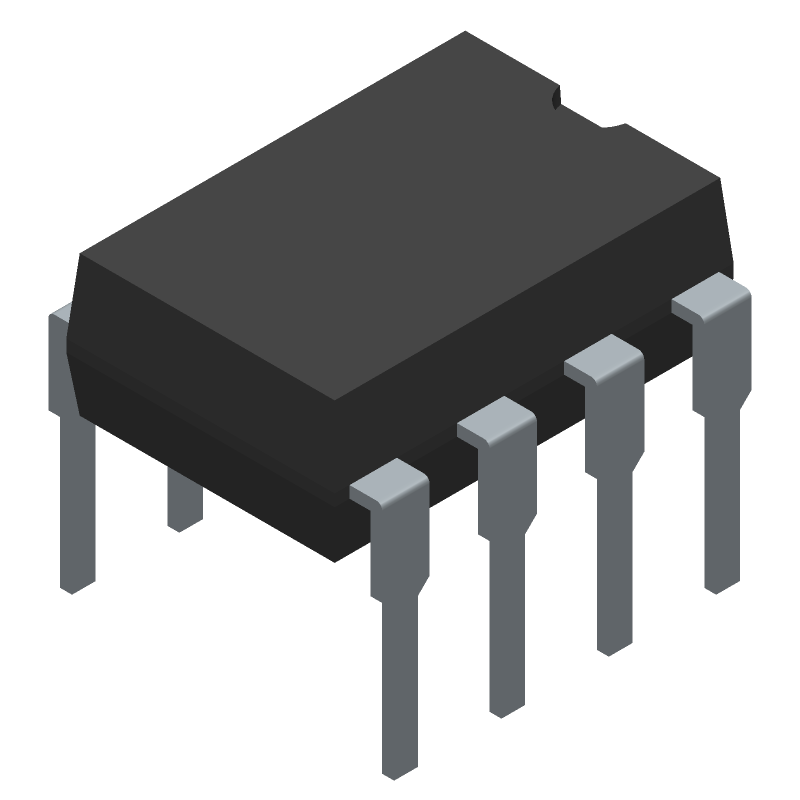

Product Images
