Adjustable precision shunt regulator, featuring a 36V reference voltage with 0.5% tolerance. Operates with a minimum input voltage of 2.495V and a maximum of 37V, supporting an output current of up to 100mA. Packaged in a compact SOT-89 (4.5mm L x 2.5mm W x 1.5mm H) with a cathode current of 700µA. This RoHS compliant component is suitable for operation across a wide temperature range of -40°C to 125°C.
PackageSOT-89
Quick Jump:
Technical Specifications
Texas Instruments TL431BIPK technical specifications.
General
| Package/Case | SOT-89 |
| Cathode Current | 700uA |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Input Voltage | 37V |
| Min Input Voltage | 2.495V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 36V |
| Min Output Voltage | 2.5V |
| Number of Channels | 1 |
| Output Current | 100mA |
| Output Voltage | 36V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt, Adjustable |
| Reference Voltage | 36V |
| RoHS Compliant | Yes |
| Tolerance | 0.5% |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL431BIPK Datasheet
Download the complete datasheet for Texas Instruments TL431BIPK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

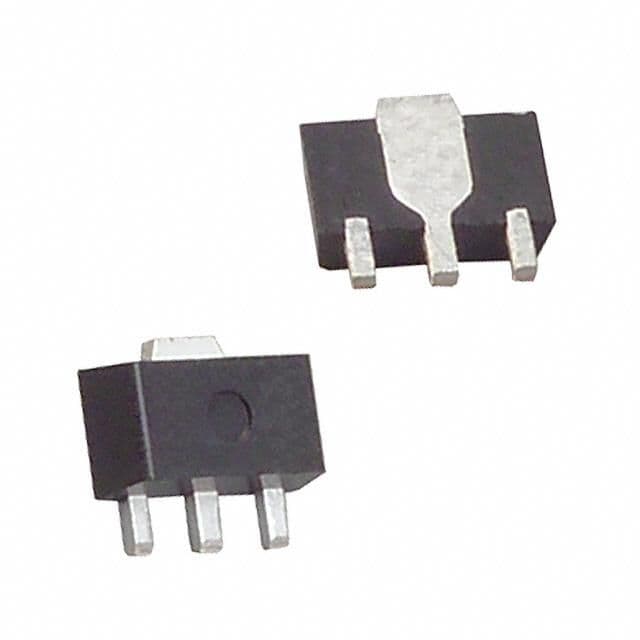

Product Images
