Intelligent matrix LED display driver featuring a BGA package for surface mounting. Operates with a 2.7V to 5.5V input voltage range and a 1.8V to 5.5V supply voltage. Offers 29 outputs with a maximum output current of 480mA and a maximum output voltage of 4.6V. Utilizes an SPI interface and a boost topology, with a maximum operating frequency of 2.4MHz. RoHS compliant and operates within a -30°C to 85°C temperature range.
Frequency2.4MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STLED524 technical specifications.
General
| Package/Case | BGA |
| Frequency | 2.4MHz |
| Height | 600um |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Input Voltage (DC) | 5.5V |
| Min Input Voltage (DC) | 2.7V |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 4.6V |
| Min Output Voltage | 2.8V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 3.7V |
| Nominal Supply Current | 2uA |
| Number of Channels | 2 |
| Number of Outputs | 29 |
| Output Current | 480mA |
| Output Voltage | 4.6V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STLED524 Datasheet
Download the complete datasheet for Stmicroelectronics STLED524 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

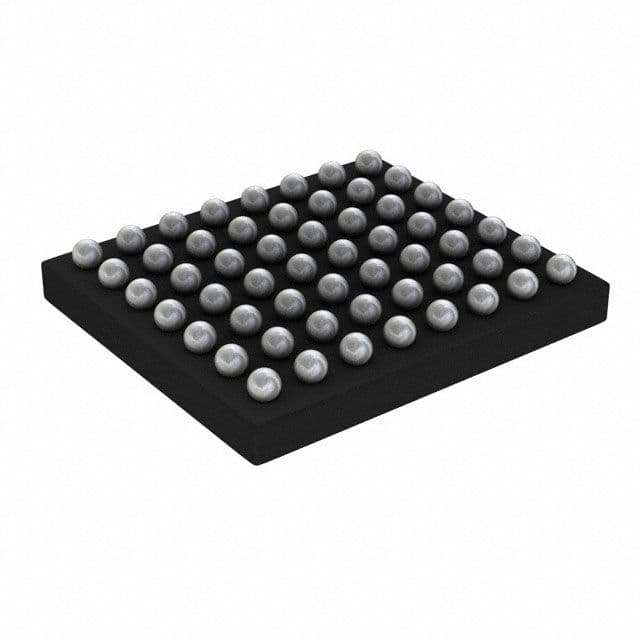

Product Images
