2.5V fixed output voltage reference IC, featuring low 3.9µA quiescent current and 5mA output current capability. This surface mount component offers a ±0.15% initial tolerance and a low 30-ppm/°C temperature drift. Operating from a 2.7V to 5.5V input range, it functions across an extended temperature range of -40°C to 125°C. Available in SC package, this RoHS compliant device is ideal for power management applications.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments REF3325AIDCKT technical specifications.
General
| Package/Case | SC |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5mA |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Current | 8.5uA |
| Output Current | 5mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 3.9uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Series |
| Reference Voltage | 2.5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 0.15% |
| Weight | 0.000219oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments REF3325AIDCKT Datasheet
Download the complete datasheet for Texas Instruments REF3325AIDCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

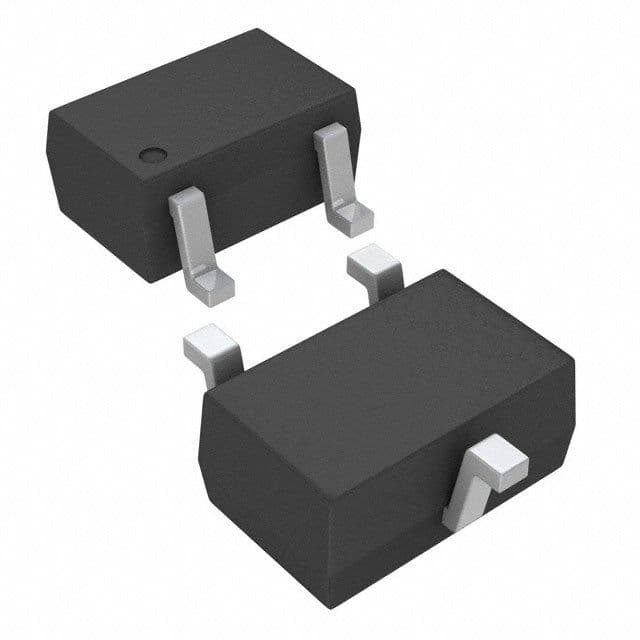

Product Images
