The DP8570AV/NOPB is a clock IC from Texas Instruments with a memory size of 44B. It operates within a temperature range of -40°C to 85°C and has a supply voltage range of 4.5V to 5.5V. The IC is packaged in a PLCC and is RoHS compliant. It is available in a rail/Tube packaging and has a weight of 0.041719oz.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DP8570AV/NOPB technical specifications.
General
| Package/Case | PLCC |
| Date Format | YY-MM-DD-dd |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Logic Function | Clock |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 44B |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Time Format | HH:MM:SS:hh |
| Weight | 0.041719oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DP8570AV/NOPB Datasheet
Download the complete datasheet for Texas Instruments DP8570AV/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

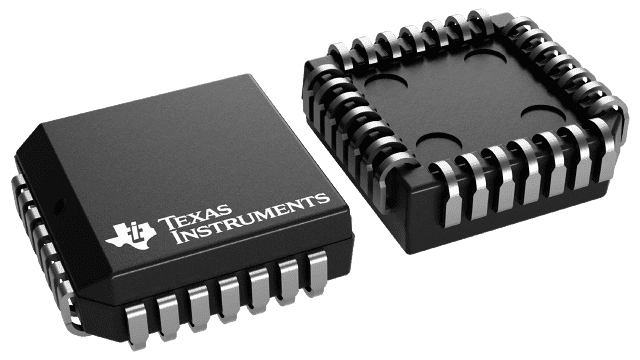

Product Images
