Stmicroelectronics
LED7708
16 channels x 85 mA LED driver with boost controller and 4-wire serial interface
Frequency1MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LED7708 technical specifications.
General
| Dimming | PWM |
| Frequency | 1MHz |
| Max Input Voltage | 36V |
| Min Input Voltage | 3.6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Mount | Surface Mount |
| Number of Channels | 16 |
| Number of Outputs | 16 |
| Output Current per Channel | 85mA |
| Output Voltage | 36V |
| Package Quantity | 260 |
| Packaging | Tray |
| Quiescent Current | 9uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LED7708 Datasheet
Download the complete datasheet for Stmicroelectronics LED7708 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

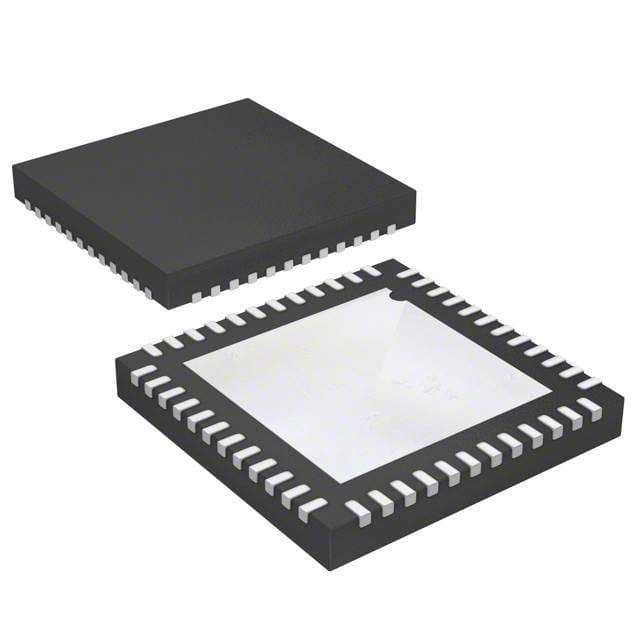

Product Images
