Surface mount DC/DC controller and regulator with a 100V maximum output voltage and 50mA maximum output current. Features a wide input voltage range of 7.115V to 7.405V and a maximum power dissipation of 227mW. Operates across a temperature range of -55°C to 150°C. This component is RoHS compliant and packaged on a 3000-piece tape and reel.
PackageSC
MountingSurface Mount
Power227mW
Quick Jump:
Technical Specifications
Onsemi FHR1200 technical specifications.
General
| Package/Case | SC |
| Collector Emitter Breakdown Voltage | 100V |
| Height | 1mm |
| Length | 2mm |
| Max Breakdown Voltage | 100V |
| Max Collector Current | 50mA |
| Max Input Voltage | 7.405V |
| Min Input Voltage | 7.115V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 50mA |
| Max Output Voltage | 100V |
| Min Output Voltage | 7.5V |
| Max Power Dissipation | 227mW |
| Mount | Surface Mount |
| Output Voltage | 100V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 227mW |
| Radiation Hardening | No |
| Reference Type | Shunt, Programmable |
| RoHS Compliant | Yes |
| Weight | 0.028g |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FHR1200 Datasheet
Download the complete datasheet for Onsemi FHR1200 to view detailed technical specifications.
No datasheet is available for this part.

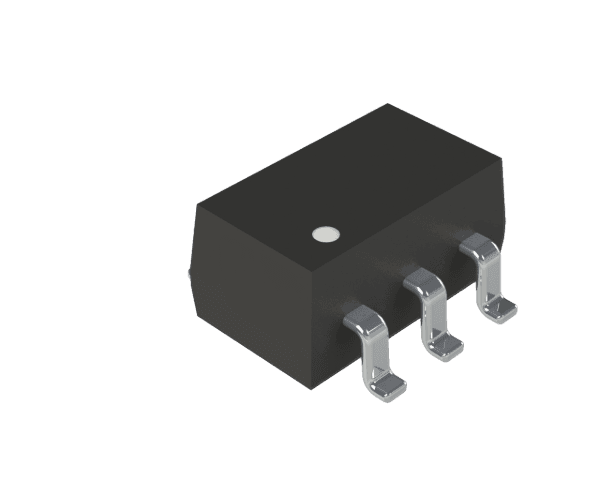

Product Images
