12-Bit, 125MS/s Analog-to-Digital Converter (ADC) with a differential input. Features a 12-bit resolution and a sampling rate of 125 MS/s. Offers an Integral Nonlinearity (INL) of 2 LSB and a Signal-to-Noise Ratio (SNR) of 71.5 dB. Operates with a supply voltage range of 3V to 3.6V and a typical power consumption of 417mW. Packaged in a 32-VQFN with gold contact plating, suitable for surface mounting. RoHS compliant and operates across a temperature range of -40°C to 85°C.
PackageVQFN
MountingSurface Mount
PolarityBipolar
Power417mW
Quick Jump:
Technical Specifications
Texas Instruments ADS6125IRHBR technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 125000KS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | DDR, LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 625mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 417mW |
| Power Dissipation | 417mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 125MS/s |
| Signal to Noise Ratio (SNR) | 71.5dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS6125IRHBR Datasheet
Download the complete datasheet for Texas Instruments ADS6125IRHBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

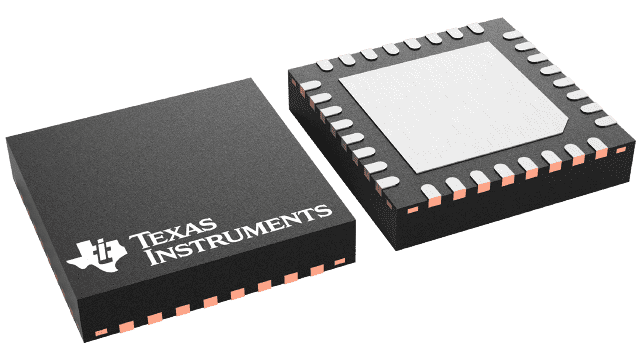

Product Images
