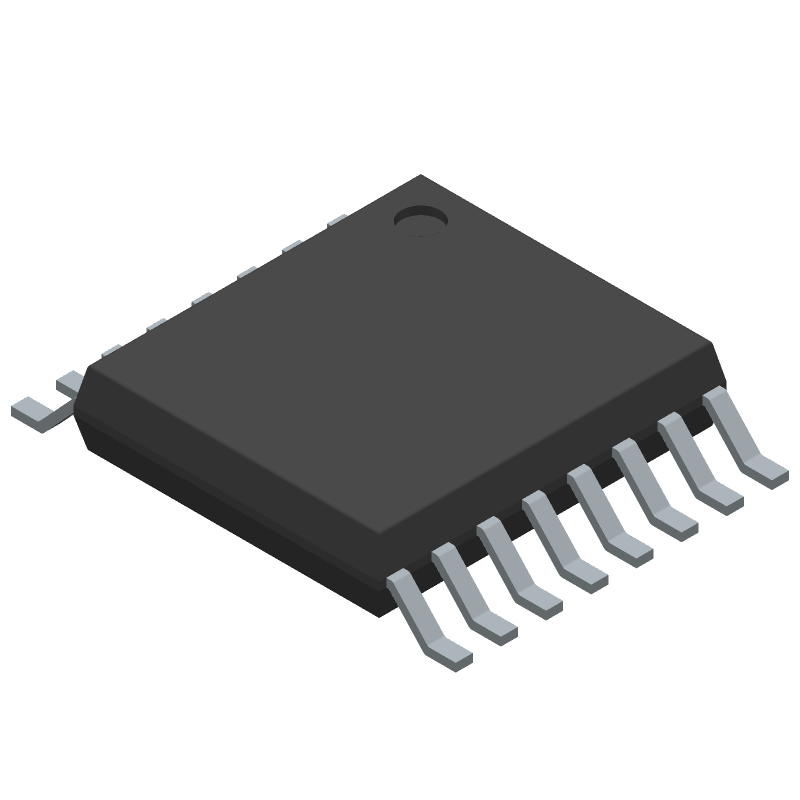

6 GHz integer-N Phase-Locked Loop (PLL) IC, operating from a 2.7V to 3.3V supply. Features a 16-terminal, 4.4mm width, 5mm length R-PDSO-G16 package. Industrial temperature grade, with a minimum operating temperature of -40°C and a maximum of 85°C.
Quick Jump:
Technical Specifications
Analog Devices ADF4106BRUZ technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 16 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G16 |
| Width | 4.4 |
| Length | 5 |
| Pin Count | 16 |
| Number of Functions | 1 |
| Temperature Grade | INDUSTRIAL |
| Supply Voltage-Nom (Vsup) | 3 |
| Supply Voltage-Max (Vsup) | 3.3 |
| Supply Voltage-Min (Vsup) | 2.7 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | No |
| HTS Code | 8542.39.00.01 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Analog Devices ADF4106BRUZ Datasheet
Download the complete datasheet for Analog Devices ADF4106BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
