Right-angle, 3-position mains power connector featuring a 15A current rating and 250V AC/DC voltage rating. Constructed with a black nylon body and tin-plated pin contacts, this through-hole mount connector is designed for panel, flange, and PCB applications. It offers solder termination and is compliant with UL, CSA, VDE, NEMKO, FIMKO, SEMKO, DEMKO, and KEMA approvals, as well as RoHS standards.
Current15A
Voltage Rating250V
Current Rating15A
MountingThrough Hole, Panel, Flanges, PCB
Quick Jump:
Technical Specifications
Qualtek 703W-00/54 technical specifications.
General
| Approvals | UL, CSA, VDE, NEMKO, FIMKO, SEMKO, DEMKO, KEMA |
| Body Material | Nylon |
| Color | Black |
| Contact Plating | Tin |
| Contact Type | Pin |
| Current | 15A |
| Current Rating | 15A |
| Fuse | No |
| Lead Free | Lead Free |
| Max Current Rating | 15A |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, Panel, Flanges, PCB |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 9mm |
| Primary Type | POWER |
| RoHS Compliant | Yes |
| Series | 703W |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Qualtek 703W-00/54 Datasheet
Download the complete datasheet for Qualtek 703W-00/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

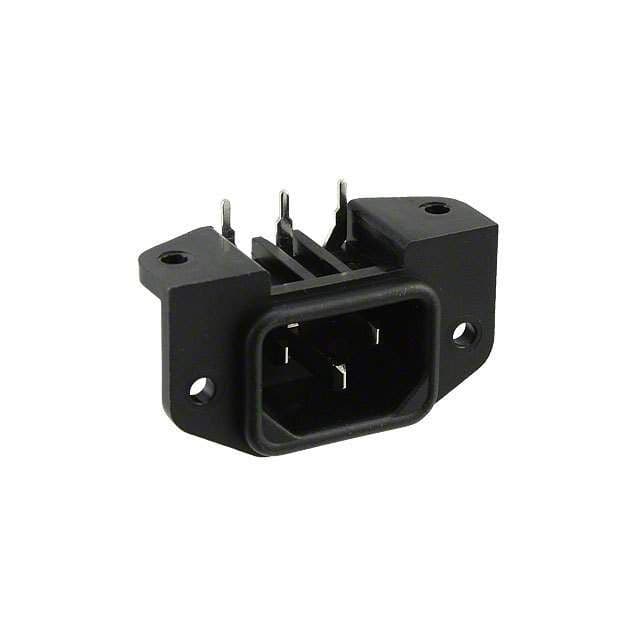

Product Images
