PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi 4N33VM technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 1V |
| Collector-emitter Voltage-Max | 1V |
| Contact Plating | Tin, Matte |
| Input Type | DC |
| Isolation Voltage-Max | 5.3kV |
| Lead Free | Lead Free |
| Max Collector Current | 150mA |
| Max Input Current | 80mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Output Current per Channel | 150mA |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Weight | 0.855g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 4N33VM Datasheet
Download the complete datasheet for Onsemi 4N33VM to view detailed technical specifications.
No datasheet is available for this part.

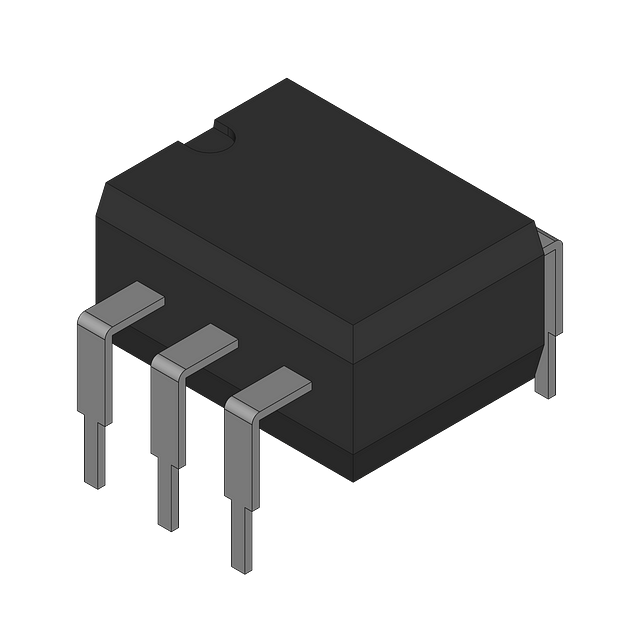

Product Images
