Surface mountable optocoupler featuring a single channel DC input and Darlington transistor output. Offers a 7.5kV isolation voltage and a maximum output voltage of 60V with a 150mA output current per channel. Key specifications include a 500% current transfer ratio, 10mA forward current, and 80mA maximum input current. Operating temperature range spans from -40°C to 100°C, with a maximum power dissipation of 250mW. This component is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi 4N32SM technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 1V |
| Collector-emitter Voltage-Max | 1V |
| Current Transfer Ratio | 500% |
| Fall Time | 100us |
| Forward Current | 10mA |
| Input Current | 80mA |
| Input Type | DC |
| Isolation Voltage | 7.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Max Collector Current | 150mA |
| Max Input Current | 80mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 150mA |
| Output Voltage | 60V |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.81g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 4N32SM Datasheet
Download the complete datasheet for Onsemi 4N32SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

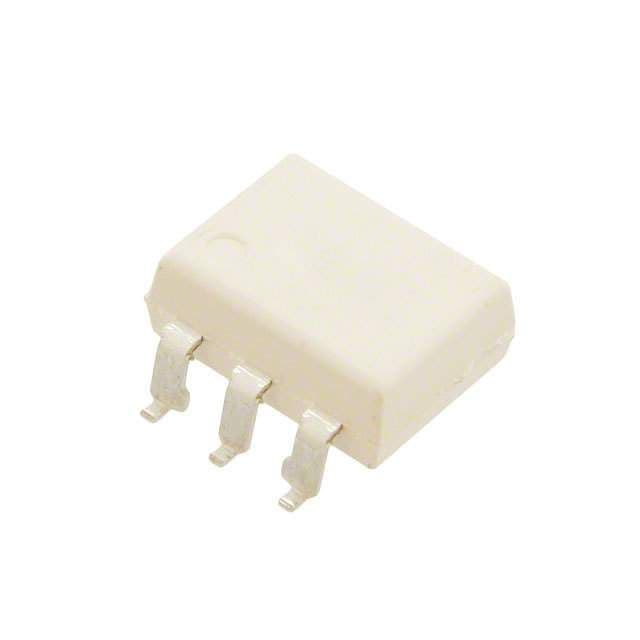

Product Images
