Texas Instruments
TPS22968DPUT
2-ch, 5.5-V, 4-A, 25-mΩ load switch with adj. rise time and output discharge 14-WSON -40 to 105
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS22968DPUT technical specifications.
General
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 800mV |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Output Configuration | High Side |
| Output Current | 4A |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 55uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22968DPUT Datasheet
Download the complete datasheet for Texas Instruments TPS22968DPUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

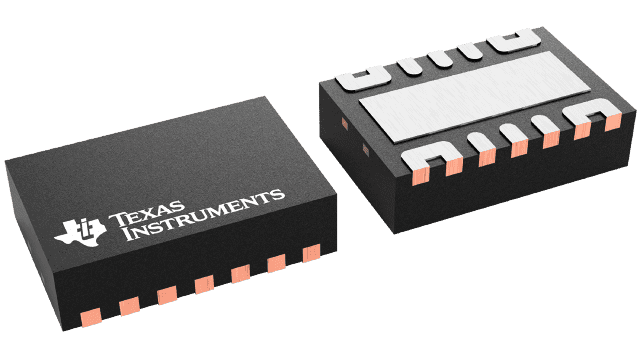

Product Images
