Resistance7.3mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS22920YZPT technical specifications.
General
| Height | 500um |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 1.25mm |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 750mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 3.6V |
| Output Configuration | High Side |
| Output Current | 4A |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 68uA |
| Radiation Hardening | No |
| Resistance | 7.3mR |
| RoHS Compliant | Yes |
| Thickness | 310um |
| Width | 2.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22920YZPT Datasheet
Download the complete datasheet for Texas Instruments TPS22920YZPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

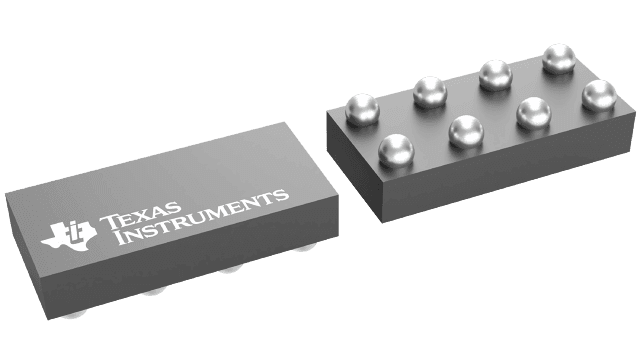

Product Images
