3-pin voltage supervisor (reset IC) with active-low, push-pull reset. Features a 2.93V threshold voltage, with undervoltage at 2.87V and overvoltage at 2.99V. Operates from a 2V to 6V supply voltage, consuming a maximum of 25uA supply current. Packaged in a 3-SOT-23 with dimensions of 3.04mm length, 1.4mm width, and 1.02mm height. Offers a 120ms reset timeout and is RoHS compliant.
PackageSOT-23
Current25uA
Quick Jump:
Technical Specifications
Texas Instruments TLV809K33DBZT technical specifications.
General
| Package/Case | SOT-23 |
| Height | 1.02mm |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 2.99V |
| Min Reset Threshold Voltage | 2.87V |
| Max Supply Current | 25uA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 9uA |
| Operating Supply Voltage | 3.3V |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 2.99V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 9uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 120ms |
| RoHS Compliant | Yes |
| Series | TLV809K33 |
| Supply Current | 25uA |
| Thickness | 1mm |
| Threshold Voltage | 2.93V |
| Undervoltage Threshold | 2.87V |
| Watchdog Timer | No |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV809K33DBZT Datasheet
Download the complete datasheet for Texas Instruments TLV809K33DBZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

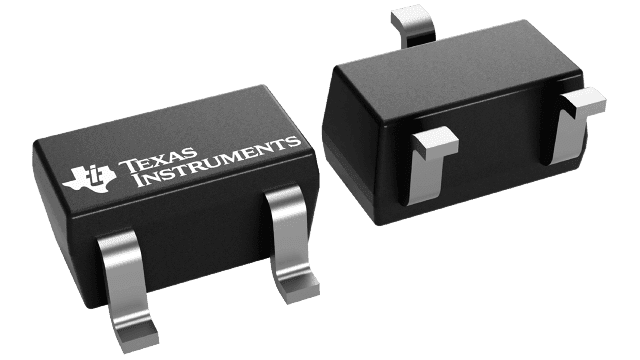

Product Images
