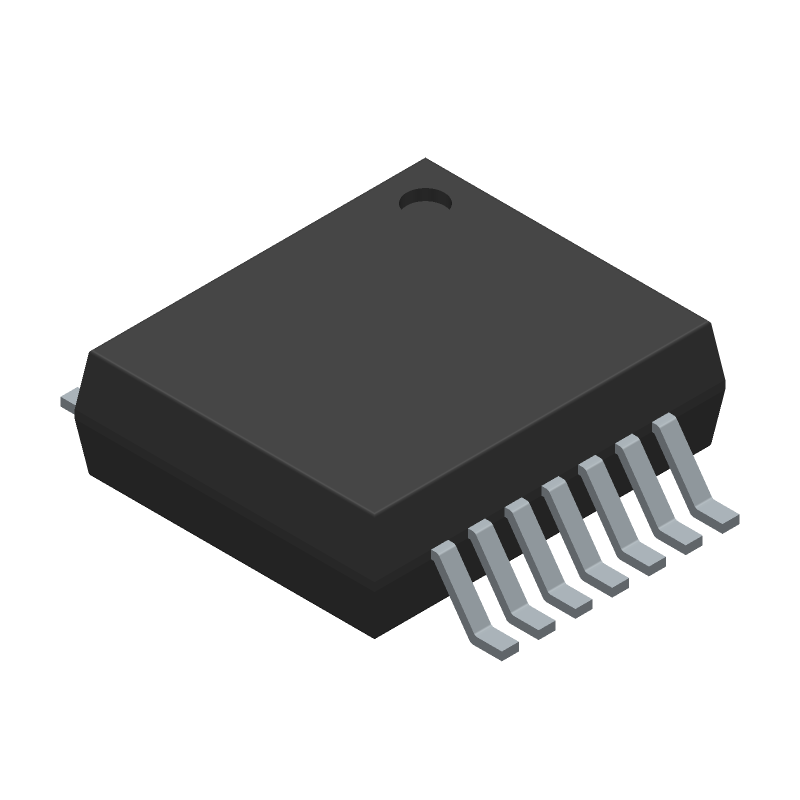

CMOS Hex Inverter IC, featuring six independent inverter gates. Surface mountable in a 14-SSOP package, this logic IC operates with a supply voltage range of 2V to 5.5V, typically 5V. It offers an output current of 12mA (high and low) and boasts a propagation delay of 7ns. Designed for a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is suitable for various electronic applications.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVU04ADBR technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | -12mA |
| Lead Free | Lead Free |
| Logic Function | Inverter |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 6 |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 12mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 7ns |
| Quiescent Current | 20uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74LVU |
| Technology | CMOS |
| Turn-On Delay Time | 8ns |
| Weight | 0.004296oz |
