Quadruple D-Type Flip-Flops with Clear, operating at a maximum frequency of 165MHz. This CMOS logic IC features positive edge clock triggering and a non-inverting polarity. It supports a supply voltage range of 2V to 5.5V and offers a high level output current of -12mA and a low level output current of 12mA. Packaged in a 16-SOIC for surface mounting, this component is RoHS compliant and operates across a temperature range of -40°C to 85°C.
Frequency165MHz
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LV175ADR technical specifications.
General
| Package/Case | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 165MHz |
| High Level Output Current | -12mA |
| Input Capacitance | 1.4pF |
| Lead Free | Lead Free |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Bits per Element | 4 |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Input Lines | 2 |
| Number of Output Lines | 2 |
| Output Current | 12mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 9.3ns |
| Quiescent Current | 20uA |
| RoHS Compliant | Yes |
| Series | 74LV |
| Technology | CMOS |
| Turn-On Delay Time | 3.7ns |
| Weight | 0.004998oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LV175ADR Datasheet
Download the complete datasheet for Texas Instruments SN74LV175ADR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

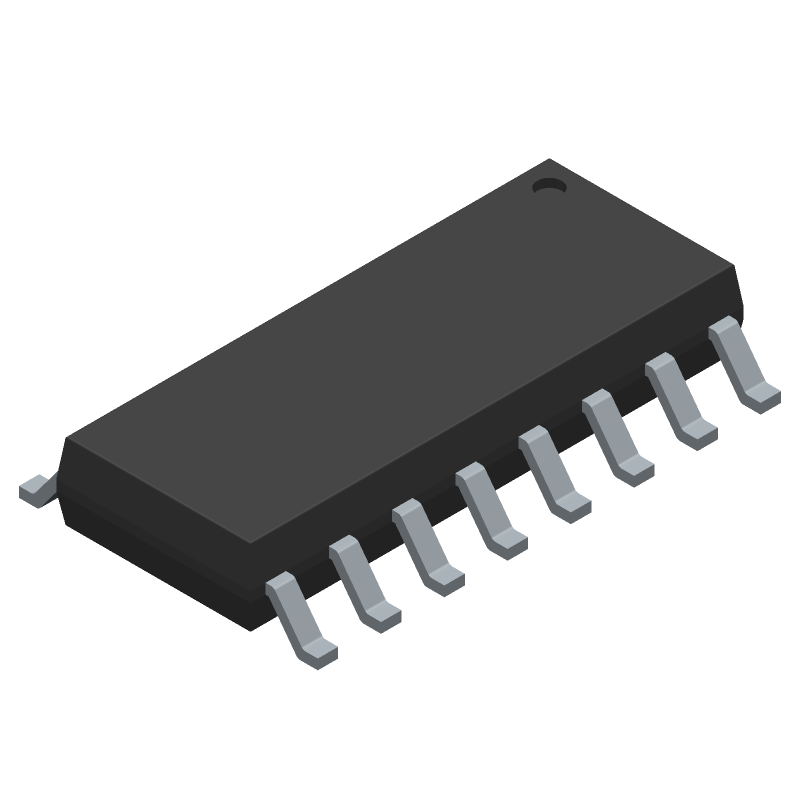

Product Images
