3.3V fixed output, positive polarity, low-dropout linear voltage regulator with 250mA maximum output current. Features ultra-low 8µA quiescent current and 130µA maximum supply current. Offers 1% output voltage accuracy and a 163mV dropout voltage at 250mA. Operates from a 2V to 5.5V input voltage range, with a maximum power dissipation of 485mW. Packaged in a compact 1.5mm x 1.5mm x 800µm WFDFN for efficient space utilization.
PackageWFDFN
PolarityPositive
Power485mW
Quick Jump:
Technical Specifications
Texas Instruments TPS72733DSER technical specifications.
General
| Accuracy | 2% |
| Package/Case | WFDFN |
| Dropout Voltage | 163mV |
| Height | 800um |
| Lead Free | Lead Free |
| Length | 1.5mm |
| Min Current Limit | 300mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Max Power Dissipation | 485mW |
| Max Supply Current | 130uA |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Voltage Accuracy | 1% |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 485mW |
| Power Supply Rejection Ratio (PSRR) | 45dB |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Thickness | 750um |
| Width | 1.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS72733DSER Datasheet
Download the complete datasheet for Texas Instruments TPS72733DSER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

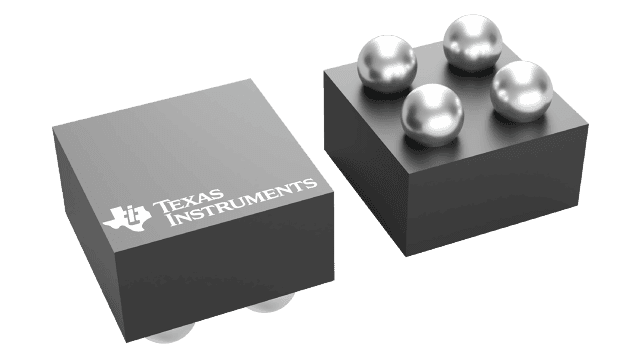

Product Images
