16-bit digital-to-analog converter (DAC) featuring a single channel and internal voltage reference. This precision DAC offers a 4mA-to-20mA current loop drive capability. It operates with a supply voltage range of 2.7V to 3.6V and supports an SPI interface. The device boasts an integral nonlinearity of 9 LSB and is available in a 16-WQFN surface-mount package. Operating temperature range is -40°C to 105°C, with tin contact plating and RoHS compliance.
Current43uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DAC161S997RGHT technical specifications.
General
| Contact Plating | Tin |
| Integral Nonlinearity (INL) | 9LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Output Polarity | Unipolar |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Supply Current | 43uA |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DAC161S997RGHT Datasheet
Download the complete datasheet for Texas Instruments DAC161S997RGHT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

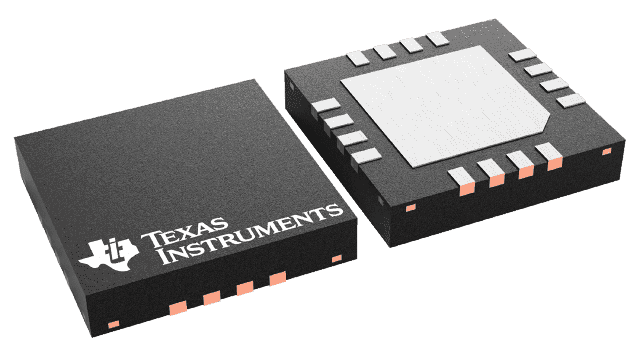

Product Images
