Dual unidirectional transient voltage suppressor (TVS) diode offering 1.5-pF capacitance and 5.5-V operating voltage. Features ±8-kV ESD protection, 1-nA maximum leakage current, and a minimum breakdown voltage of 11V. Designed for interfaces including USB 2.0, LVDS, and Ethernet, with a clamping voltage of 105.5V. Packaged in a compact 6-SON (1.45mm x 1.05mm x 0.55mm) for efficient board space utilization. Operates across a temperature range of -40°C to 85°C.
PackageSON
Capacitance1.5pF
Quick Jump:
Technical Specifications
Texas Instruments TPD2E001DRYR technical specifications.
General
| Capacitance | 1.5pF |
| Package/Case | SON |
| Clamping Voltage | 105.5V |
| Depth | 1mm |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 0.55mm |
| Interface | LVDS, USB, Ethernet |
| Lead Free | Lead Free |
| Leakage Current | 1nA |
| Length | 1.45mm |
| Min Breakdown Voltage | 11V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Leakage Current | 1nA |
| Number of Channels | 2 |
| Number of Unidirectional Channels | 2 |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | Yes |
| Width | 1.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPD2E001DRYR Datasheet
Download the complete datasheet for Texas Instruments TPD2E001DRYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

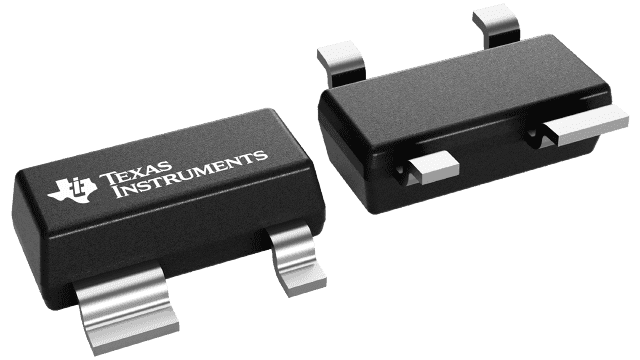

Product Images
