Dual 2x2 digital crosspoint switch IC supporting 3Gbps data rates and up to 3GHz maximum frequency. Features two independent 2x2 switch matrices with DPDT throw configuration. Operates from a 2.3V to 3.6V supply voltage, with a nominal 3.3V. Packaged in a 32-pin TQFP surface mount package, this lead-free and RoHS compliant component offers a propagation delay of 350ps.
Frequency3GHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY55858UHG technical specifications.
General
| Package/Case | TQFP |
| Data Rate | 3Gbps |
| Independent Circuits | 2 |
| Lead Free | Lead Free |
| Max Frequency | 3GHz |
| Max Input Voltage | 3.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Propagation Delay | 350ps |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SuperLite™ |
| Supply Type | Single |
| Supply Voltage-Nom | 3.6V |
| Termination | SMD/SMT |
| Throw Configuration | DPDT |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY55858UHG Datasheet
Download the complete datasheet for Microchip SY55858UHG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

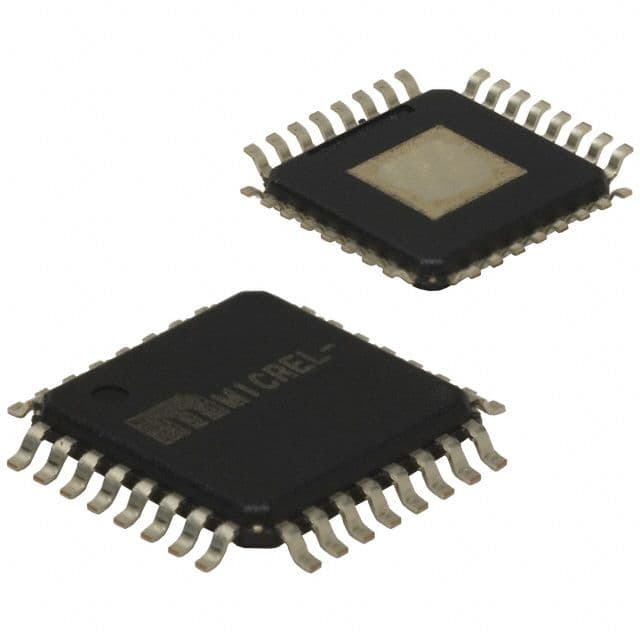

Product Images
