Single buffer gate IC, CMOS technology, operating from 1.65V to 5.5V. Features 3.2ns propagation delay, 1uA quiescent current, and 32mA output current capability at both high and low levels. Encased in a compact 1.5mm x 1.05mm x 0.55mm SON package for surface mounting. Operates across a wide temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSON
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G34DRYR technical specifications.
General
| Package/Case | SON |
| Height | 0.55mm |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Length | 1.5mm |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 1 |
| Number of Inputs | 1 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 3.2ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 9.5ns |
| Width | 1.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1G34DRYR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G34DRYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

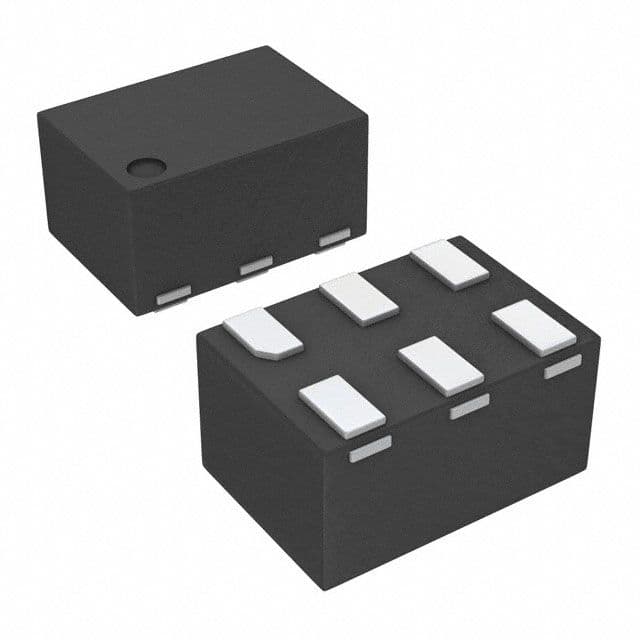

Product Images
