General-purpose analog switch, SPDT, 1-channel, 2:1 multiplexer/demultiplexer. Features a 300MHz bandwidth and 340MHz -3dB bandwidth. Operates from a single 1.65V to 5.5V supply with a low 1uA supply current. Offers 15Ω on-state resistance and 300ps propagation delay. Interface options include I2C, SPI, and UART. Packaged in a 6-SON (1.45mm x 1mm x 0.6mm) for surface mounting, with an operating temperature range of -40°C to 125°C.
PackageSON
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G3157DRYR technical specifications.
General
| -3db Bandwidth | 340MHz |
| Bandwidth | 300MHz |
| Package/Case | SON |
| Height | 600um |
| Interface | I2C, SPI, UART |
| Lead Free | Lead Free |
| Length | 1.45mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 10uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| On-State Resistance | 15R |
| Operating Supply Current | 1uA |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Propagation Delay | 300ps |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Supply Type | Single |
| Thickness | 500um |
| Throw Configuration | SPDT |
| Width | 1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1G3157DRYR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G3157DRYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

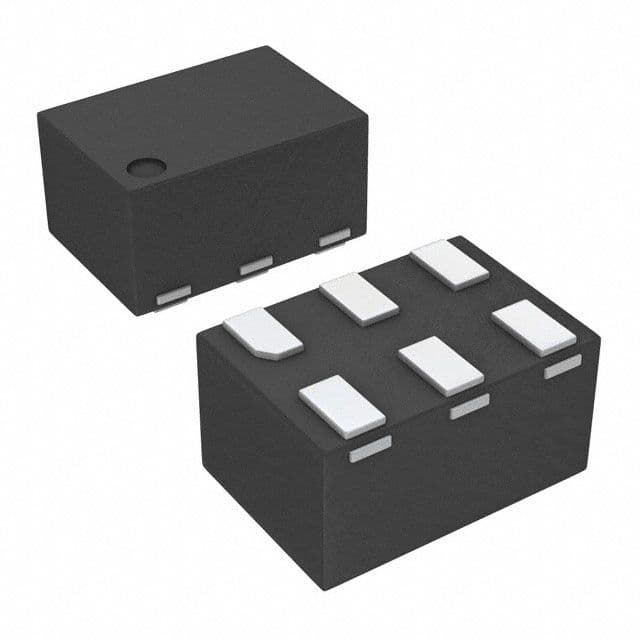

Product Images
