8-bit AVR microcontroller featuring a 16MHz clock speed and 8KB FLASH memory. This surface-mount device offers 512 Bytes of RAM, an 8-bit address and data bus, and operates from 2.7V to 5.5V. It includes SPI, UART, and USART interfaces, 11 ADC channels, and 27 programmable I/Os. Peripherals include Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer.
Frequency16MHz
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT90PWM3B-16SU technical specifications.
General
| Access Time | 16us |
| Address Bus Width | 8b |
| Package/Case | SO |
| Contact Plating | Tin, Matte |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Height | 2.29mm |
| Interface | SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 20.88mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 105°C |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of ADC Channels | 11 |
| Number of I/Os | 27 |
| Number of Programmable I/O | 27 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Package Quantity | 828 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AVR® 90PWM Lighting |
| Watchdog Timer | Yes |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT90PWM3B-16SU Datasheet
Download the complete datasheet for Microchip AT90PWM3B-16SU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

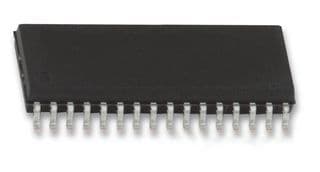

Product Images
