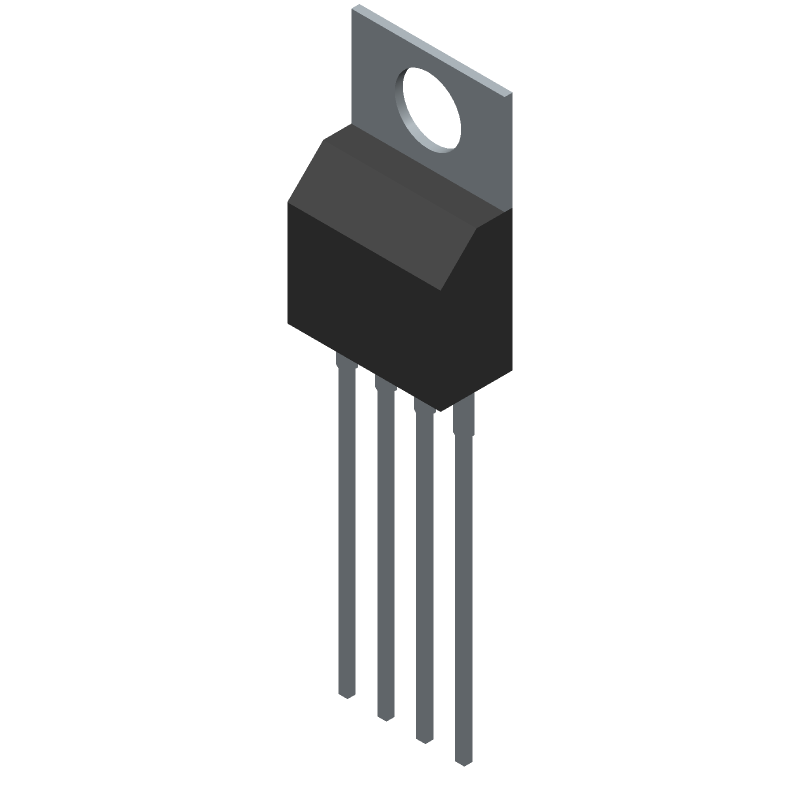

5V positive fixed output linear voltage regulator (LDO) with a maximum output current of 2A. Features a low dropout voltage, operating from a minimum input voltage of 6V up to a maximum of 35V. This through-hole component is housed in a TO-220-4 package, offering a maximum power dissipation of 15W and a maximum operating temperature of 80°C. The device is lead-free and RoHS compliant.
PackageTO-220-4
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Onsemi KA278R05CTU technical specifications.
General
| Package/Case | TO-220-4 |
| Height | 15.9mm |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 2A |
| Min Output Voltage | 5V |
| Max Power Dissipation | 15W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Fixed, Adjustable |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 10mA |
| Reference Voltage | 1.3V |
| RoHS Compliant | Yes |
| Weight | 2.829g |
| Width | 3mm |
Compliance
| RoHS | Compliant |
