Eight-channel, 10-bit Analog-to-Digital Converter (ADC) with a 65 MSPS conversion rate. Features LVDS and parallel interface, differential input type, and 1 LSB integral nonlinearity. Operates from a 3V to 3.6V supply voltage with a maximum power dissipation of 1W. Packaged in an 80-HTQFP with gold contact plating, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageHTQFP
Power845mW
Quick Jump:
Technical Specifications
Texas Instruments ADS5277IPFPT technical specifications.
General
| Package/Case | HTQFP |
| Contact Plating | Gold |
| Conversion Rate | 65000KS/s |
| Differential Nonlinearity | 0.5LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of A/D Converters | 8 |
| Number of Analog Inputs | 8 |
| Number of Bits | 10 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Consumption | 845mW |
| Power Dissipation | 911mW |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 65000000S/s |
| Signal to Noise Ratio (SNR) | 61.7dB |
| Spurious-free dynamic range (SFDR) | 84dB |
| Supply Type | Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS5277IPFPT Datasheet
Download the complete datasheet for Texas Instruments ADS5277IPFPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

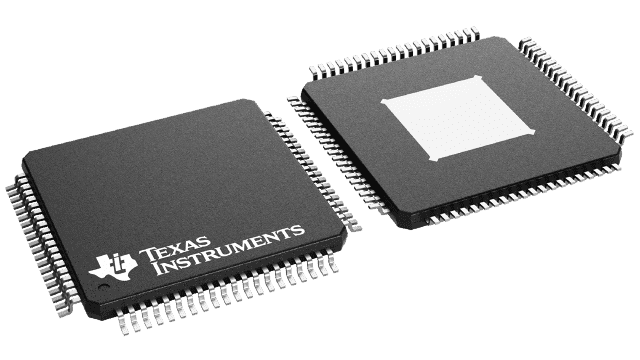

Product Images
