Texas Instruments
TPS22915BYFPT
5.5-V, 2-A, 39-mΩ load switch with output discharge 4-DSBGA -40 to 105
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS22915BYFPT technical specifications.
General
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 37mR |
| Operating Supply Voltage | 5.5V |
| Output Configuration | High Side |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 7.7uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22915BYFPT Datasheet
Download the complete datasheet for Texas Instruments TPS22915BYFPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

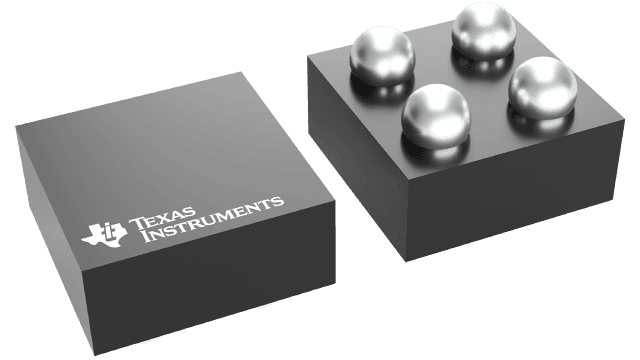

Product Images
